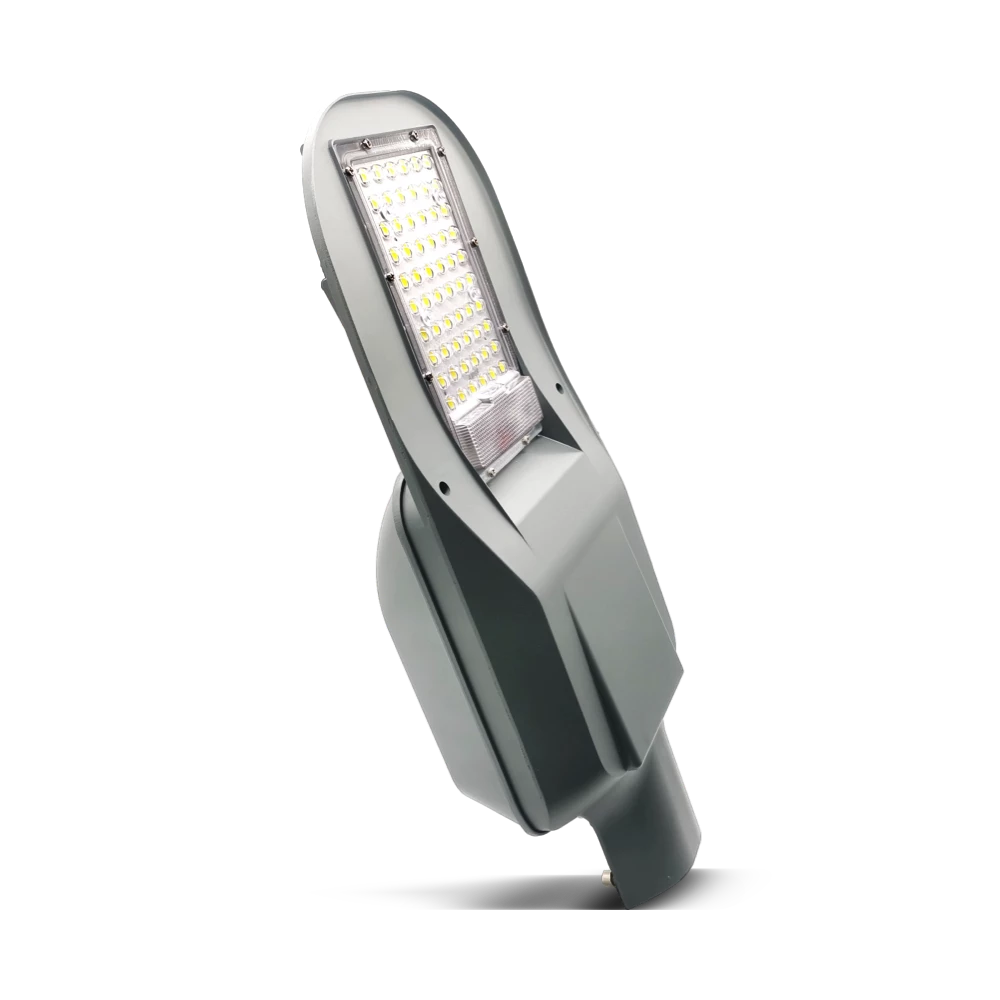

Luyi Advanced Split Solar LED Road Lighting System with Smart Energy Management

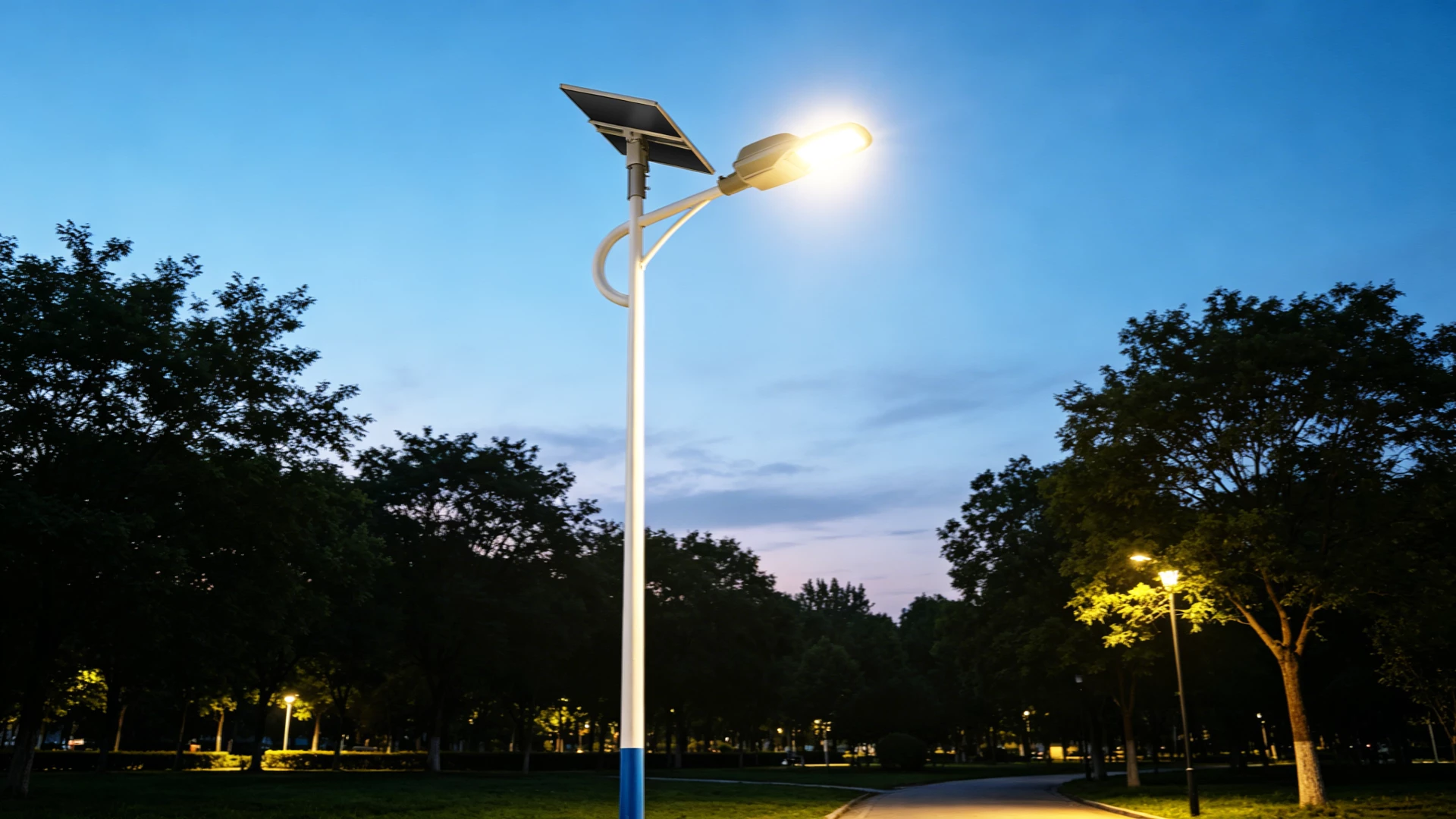

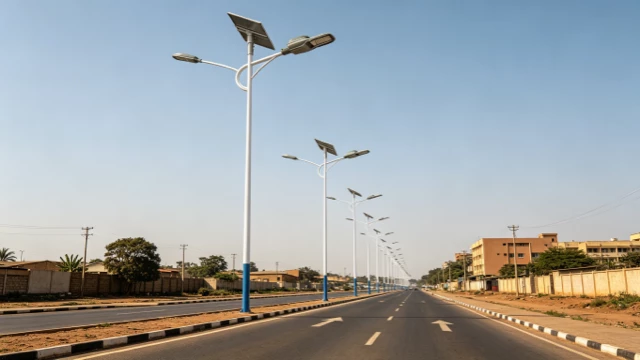

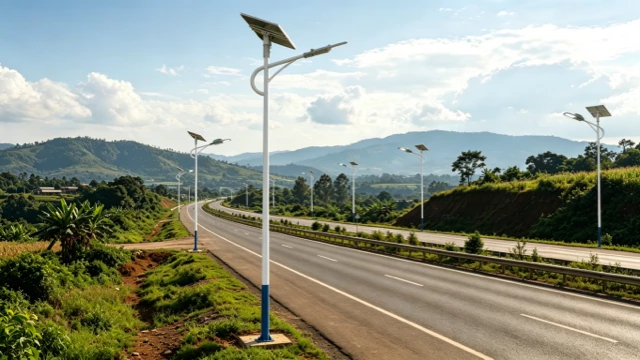

Luyi is designed for municipal roads, highways, industrial parks, and outdoor infrastructure lighting projects.

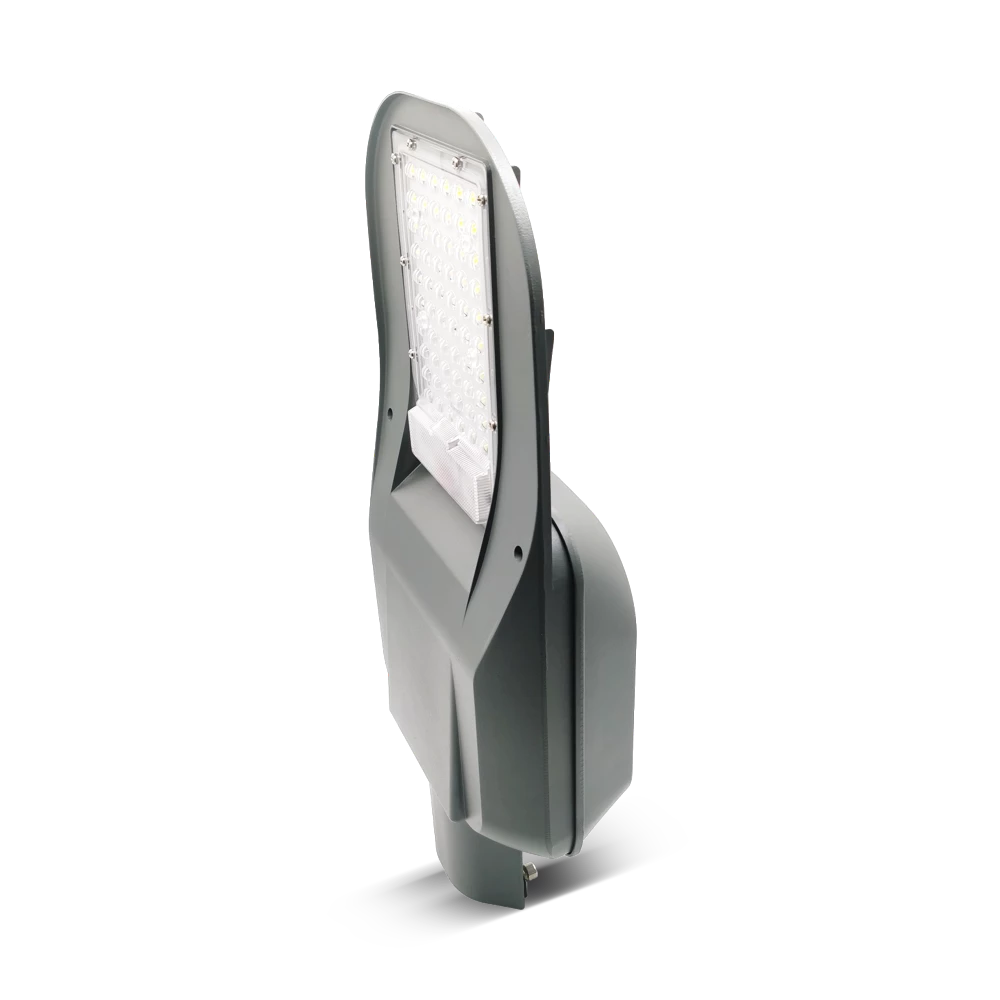

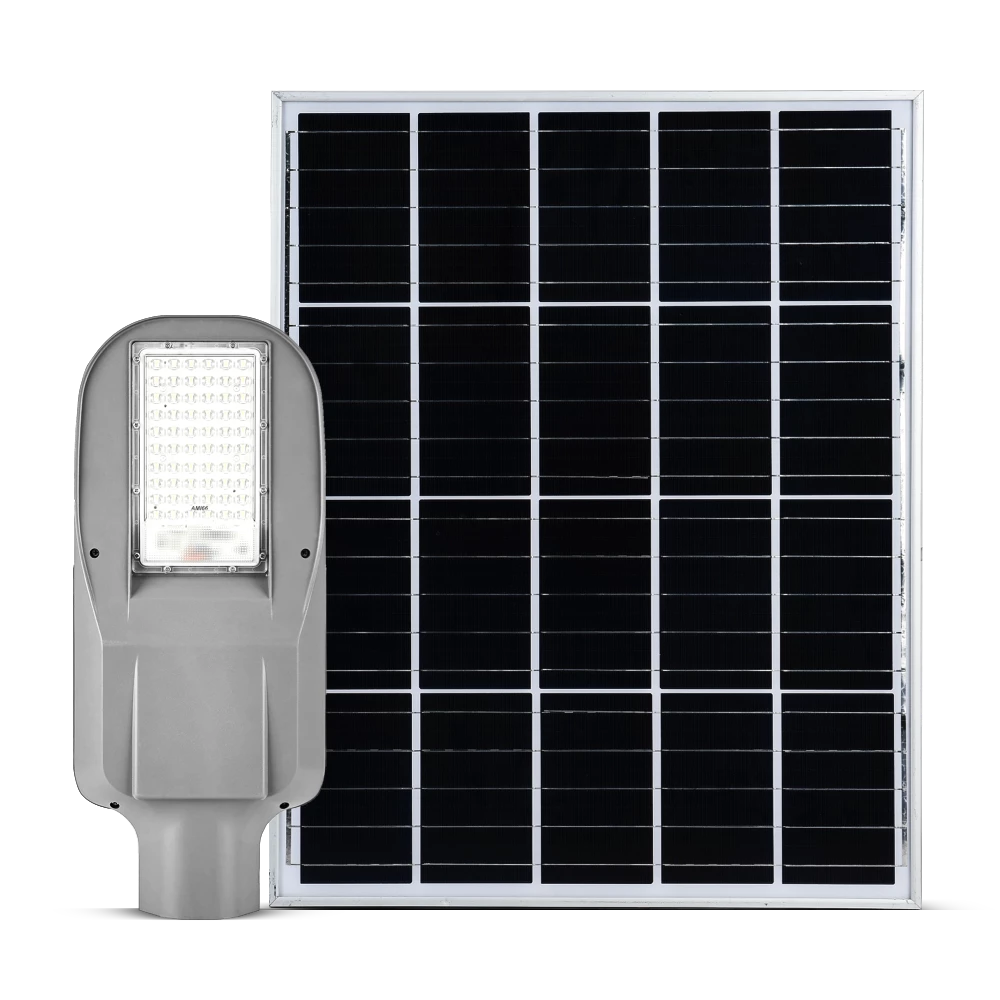

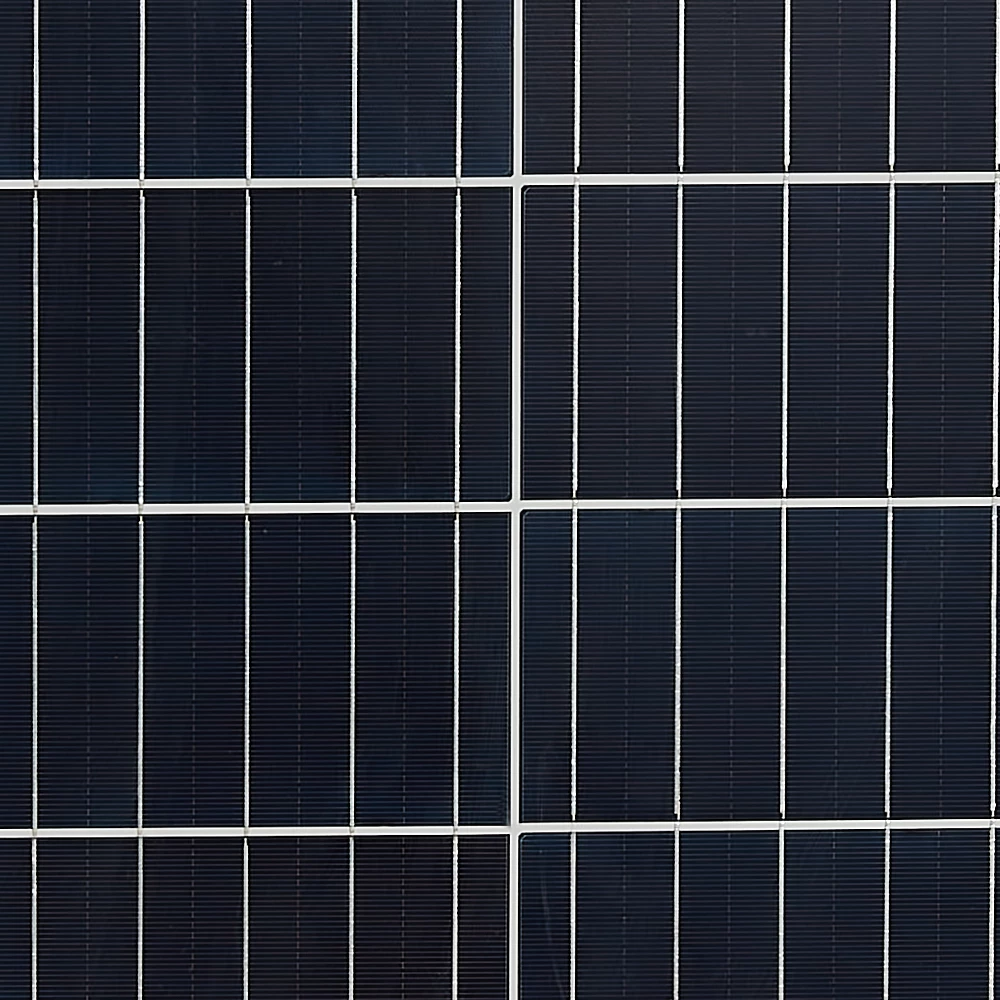

The system adopts high-efficiency 5054 SMD LED chips, a monocrystalline solar panel, a LiFePO₄ lithium battery, and intelligent APMS energy management technology to ensure stable outdoor lighting performance and a long battery lifespan.
Its 70° × 150° batwing optical lens design provides wider and more uniform roadway illumination while reducing glare and improving lighting efficiency.
The integrated all-in-one structure simplifies installation, reduces maintenance costs, and eliminates dependence on traditional grid electricity systems.
Split Solar Street Lights for Roads, Highways & Outdoor Infrastructure
Luyi is designed for municipal roads, highways, industrial parks, and outdoor infrastructure lighting projects.
The system adopts high-efficiency 5054 SMD LED chips, a monocrystalline solar panel, a LiFePO₄ lithium battery, and intelligent APMS energy management technology to ensure stable outdoor lighting performance and a long battery lifespan.
Its 70° × 150° batwing optical lens design provides wider and more uniform roadway illumination while reducing glare and improving lighting efficiency.
The integrated all-in-one structure simplifies installation, reduces maintenance costs, and eliminates dependence on traditional grid electricity systems.
Get the Product Highlights
Core Advantages of Luyi Solar Street Light

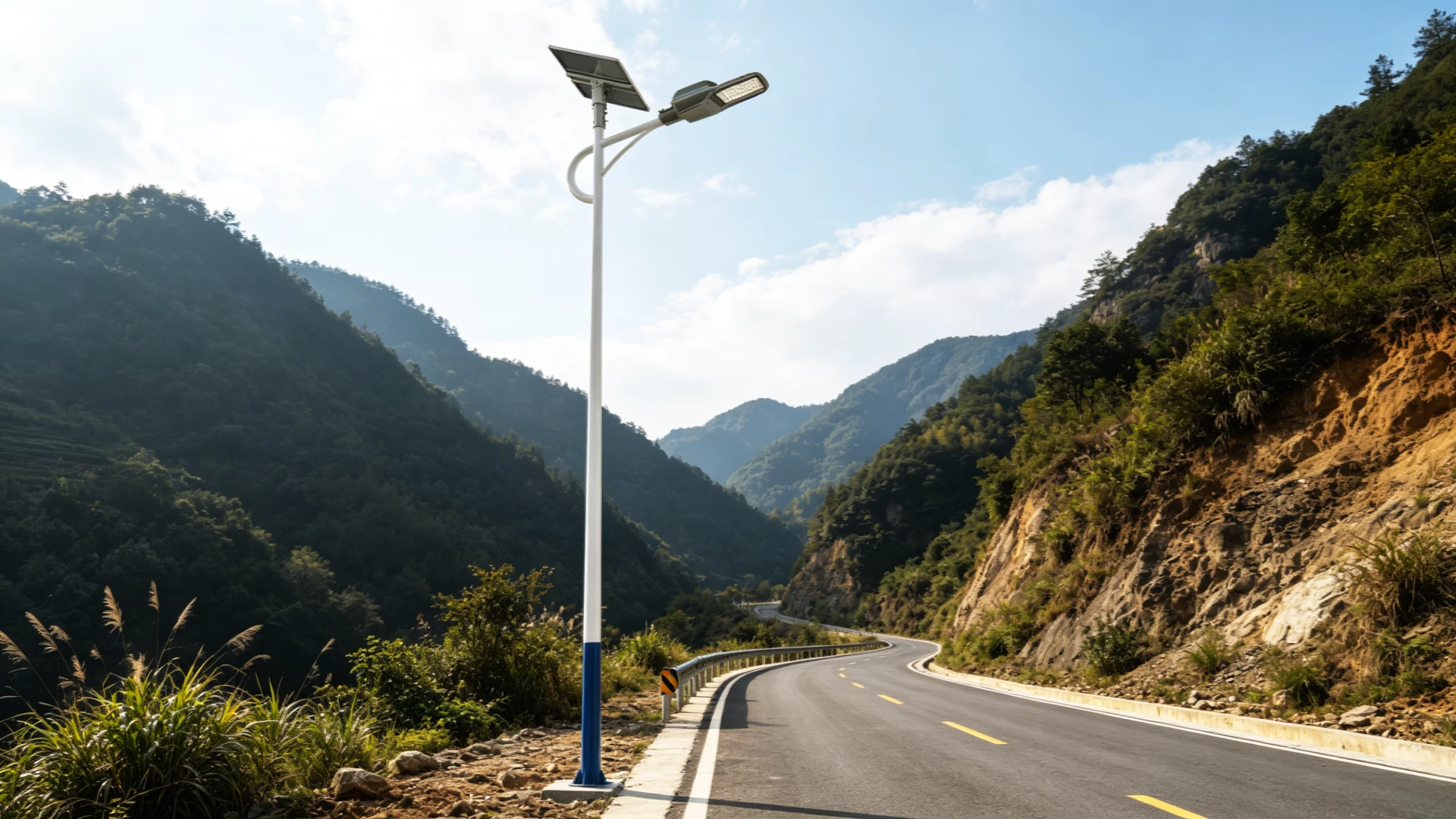

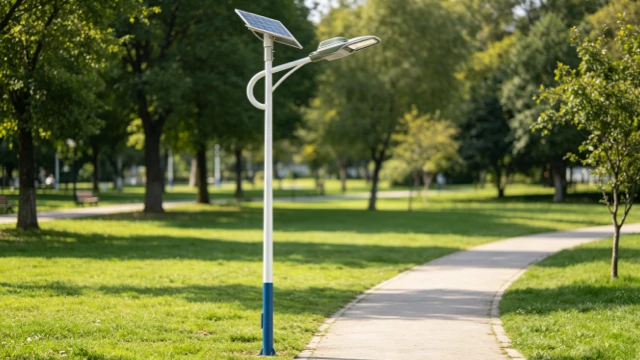

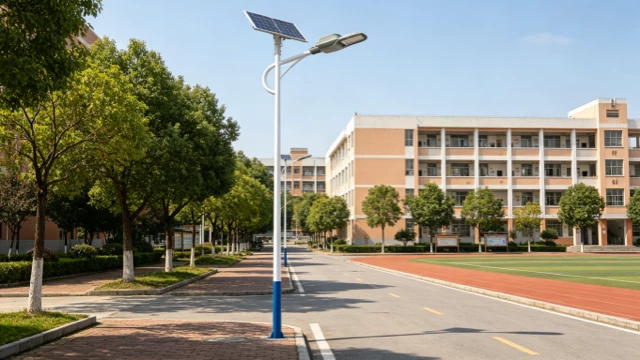

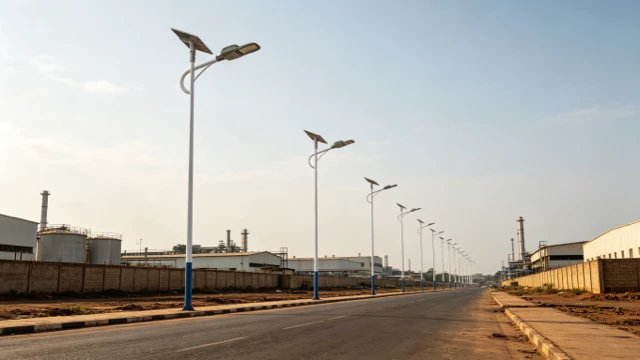

Our projects have been implemented across a wide range of application scenarios.
Why Engineers & Contractors Choose Luyi
Technical Specifications
Luyi Engineered Solar Street Lights
Basic Information
Solar & Battery
Control & Working Mode
Material & Protection
Packaging & Installation
Luyi 50W / 60W / 80W / 100W
| Model | Luyi 50W | Luyi 60W | Luyi 80W | Luyi 100W |
|---|---|---|---|---|
| Power | 20W | 25W | 30W | 40W |
| Lamp Body | 550 × 235 × 105mm | 550 × 235 × 105mm | 550 × 235 × 105mm | 550 × 235 × 105mm |
| Luminous Flux | 8000 lm | 9000 lm | 11000 lm | 13500 lm |
| LED Chips | 60 pcs 5054 SMD LED Chips | 60 pcs 5054 SMD LED Chips | 60 pcs 5054 SMD LED Chips | 100 pcs 5054 SMD LED Chips |
| Solar Panel | 5V 50W (500 × 580mm) | 5V 60W (580 × 610mm) | 5V 80W (580 × 760mm) | 5V 100W (580 × 930mm) |

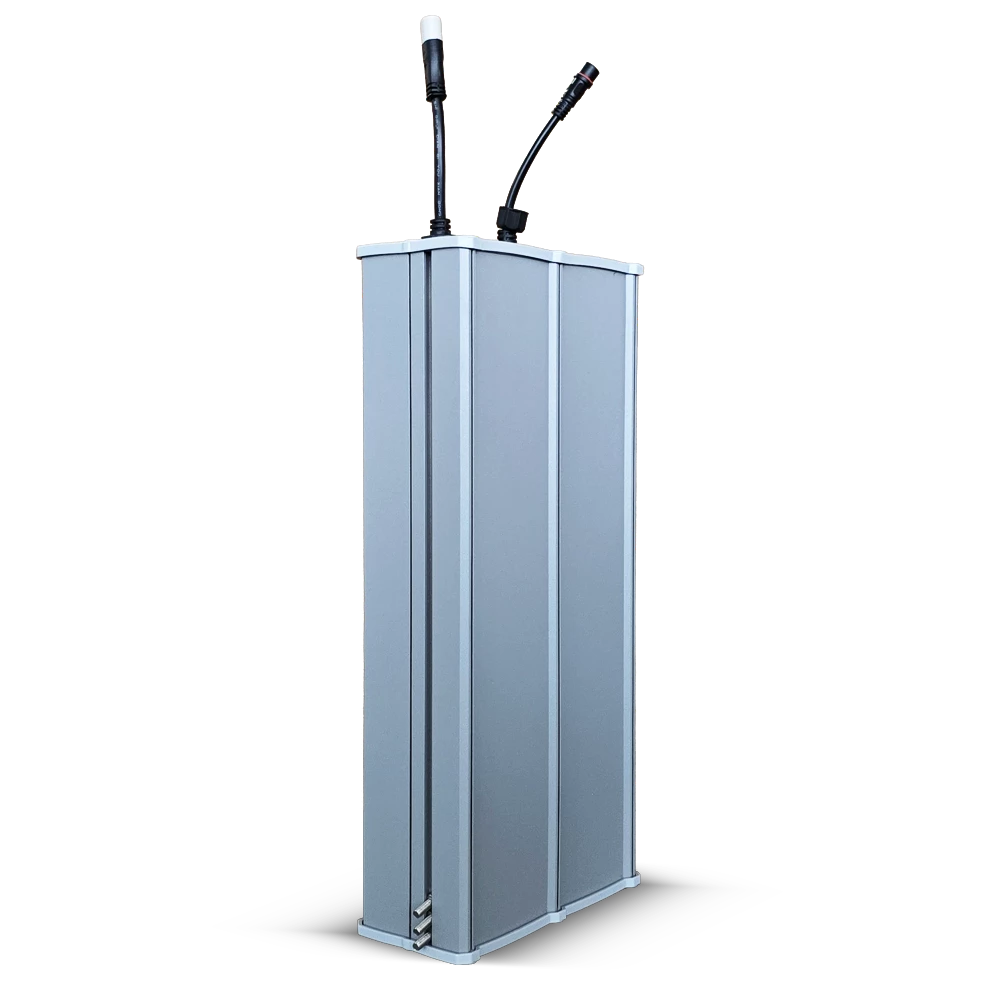

| Battery | 3.2V 60Ah LiFePO₄ | 3.2V 80Ah LiFePO₄ | 3.2V 100Ah LiFePO₄ | 3.2V 120Ah LiFePO₄ |
| Charging Time | 5–6 hrs | 5–6 hrs | 5–6 hrs | 5–6 hrs |
| Backup Time | 2–3 rainy days | 2–3 rainy days | 3 rainy days | 3–5 rainy days |
| Control Mode | Light-activated, Time-controlled (optional) | Light-activated, Time-controlled (optional) | Light-activated, Time-controlled (optional) | Light-activated, Time-controlled (optional) |
| Waterproof Grade | IP65 | IP65 | IP65 | IP65 |
| Material | Die-cast Aluminum + PC Lens | Die-cast Aluminum + PC Lens | Die-cast Aluminum + PC Lens | Die-cast Aluminum + PC Lens |
| Recommended Pole Height | 5–6 m | 6–7 m | 7–8 m | 8–10 m |

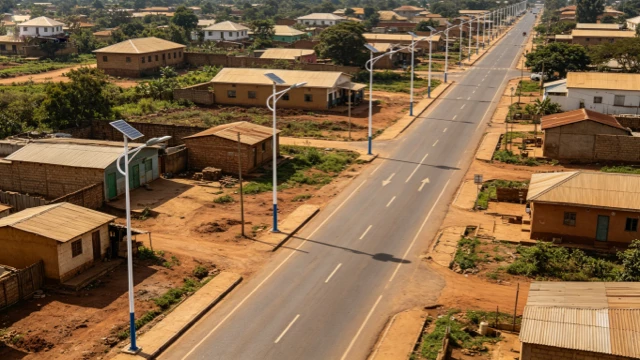

| Application | Urban roads, rural roads, parks, and Industrial parks | Urban roads, rural roads, parks, and Industrial parks | Urban roads, rural roads, parks, and Industrial parks | Highways / wide roads |
Smart APMS Energy Management System
The APMS intelligent control system is one of the core technologies of the Luyi solar street lighting system. It dynamically adjusts charging and discharging strategies according to environmental conditions and battery status.
Main advantages include:
This smart management technology helps maximize lighting performance while reducing long-term maintenance costs for large-scale infrastructure projects.

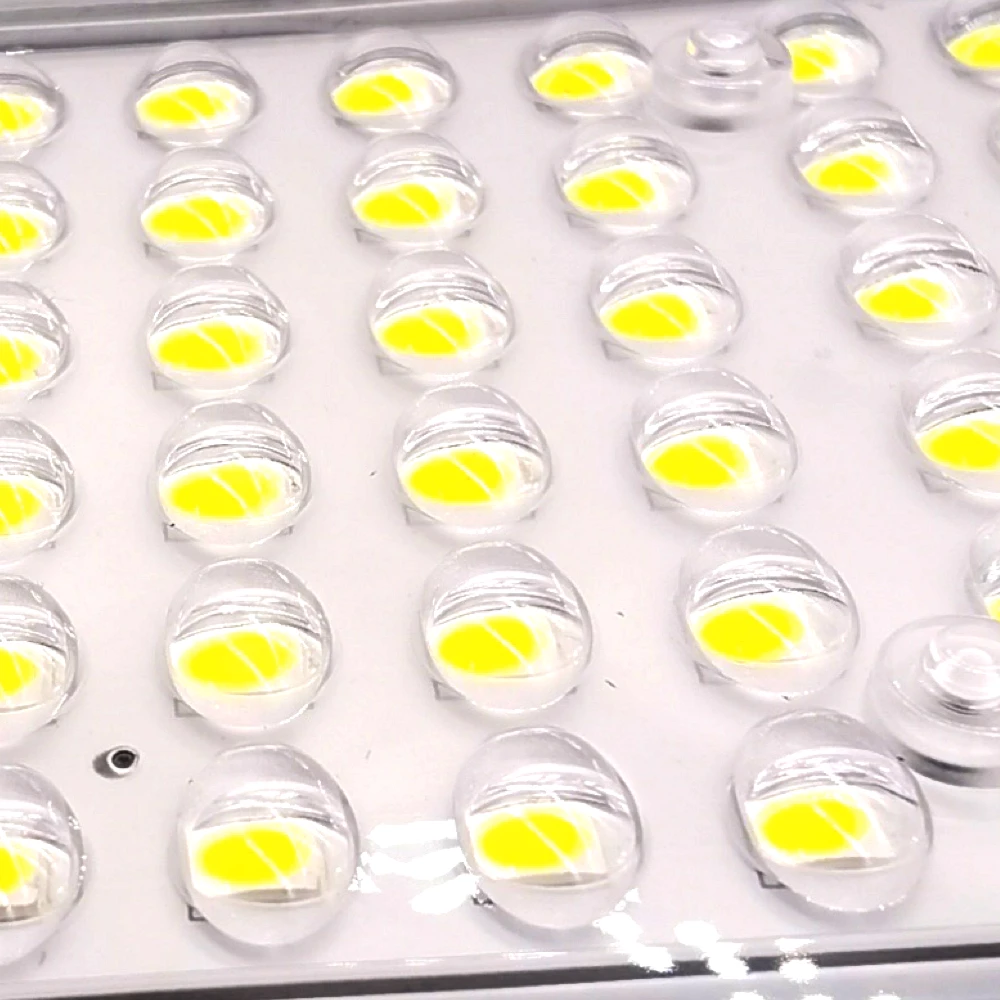

High-Performance Optical Lighting System
The Luyi solar street light uses professional roadway optical lenses to improve illumination uniformity and road coverage.
Optical Features:
The optical system is suitable for highways, municipal roads, industrial zones, and public infrastructure lighting projects.

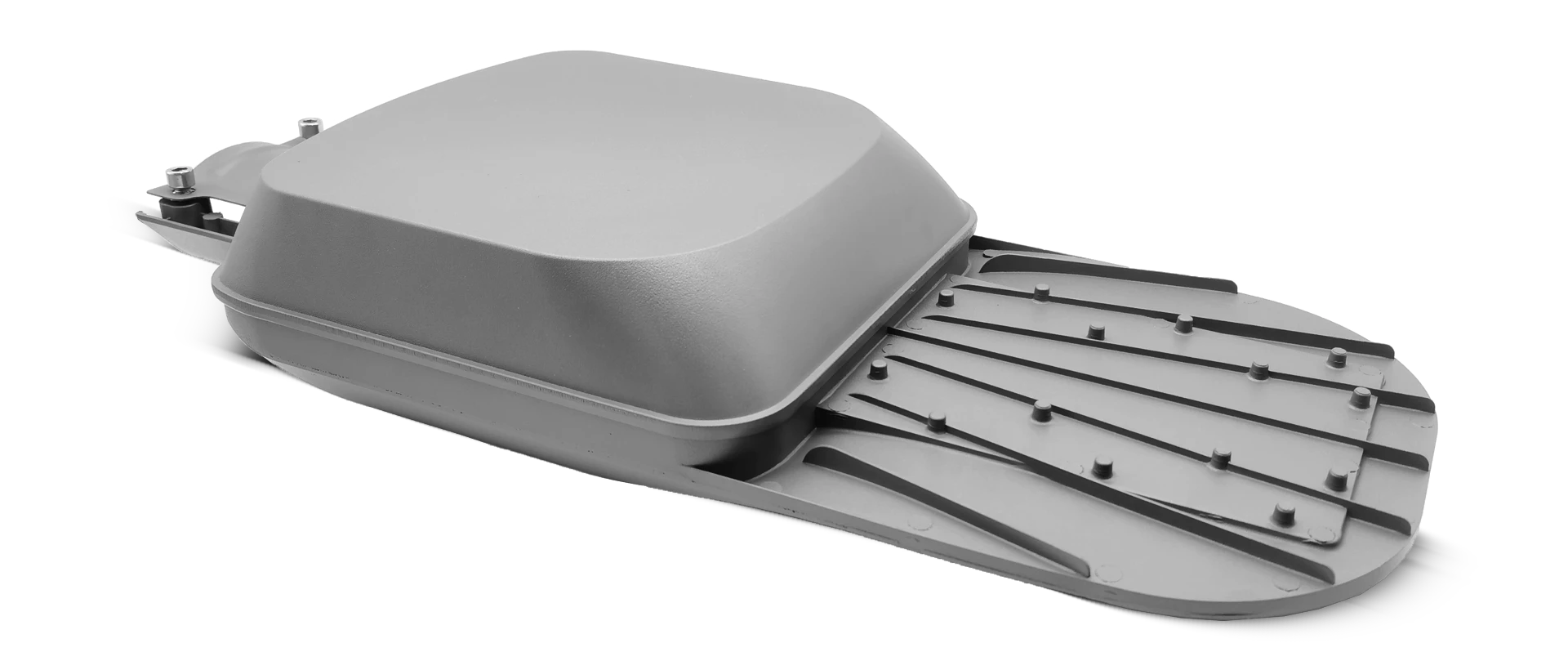

Durable Outdoor Structure Design

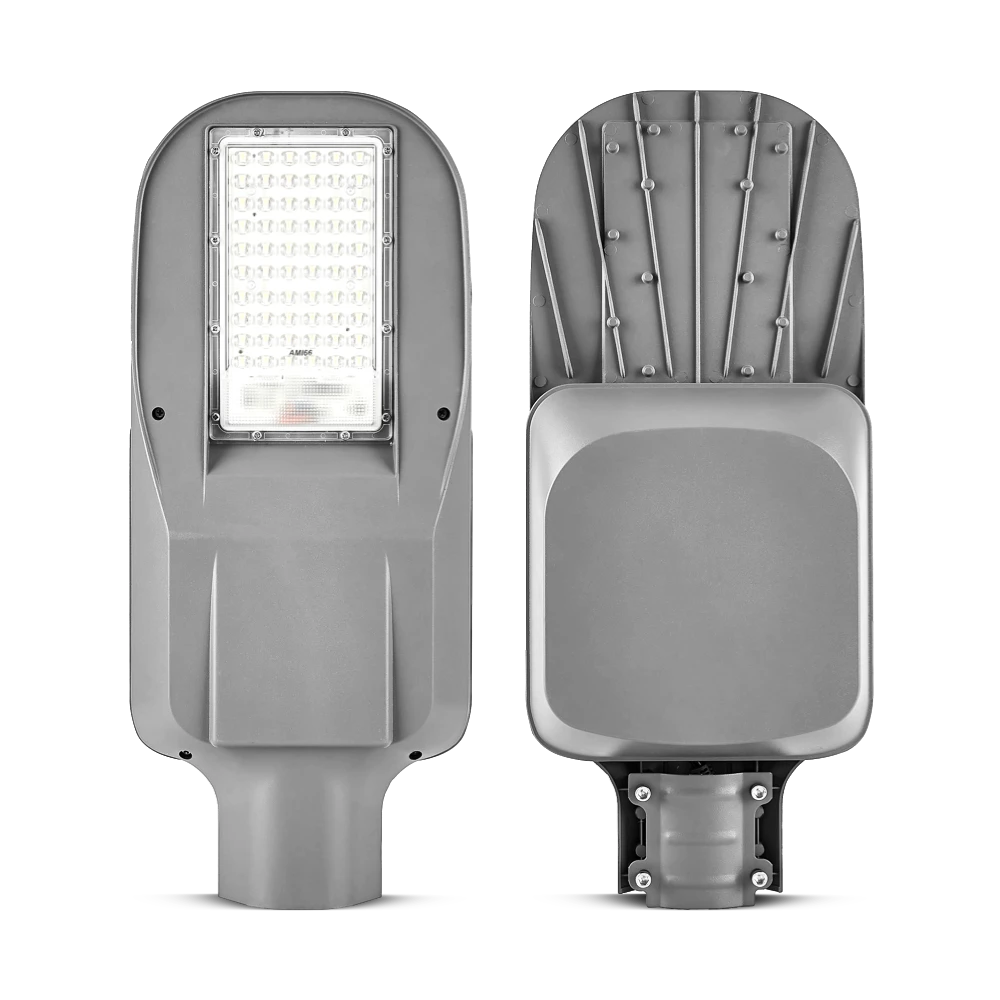

The lamp body is manufactured using high-strength die-cast aluminum with excellent heat dissipation performance and corrosion resistance.
OEM & ODM Solar Street Light Services
Queneng provides flexible OEM and ODM manufacturing services for distributors, engineering contractors, government tenders, and lighting brands.
Our workflow adapts to your specific goals, ensuring each product perfectly matches your brand identity and market demand.
Customization Services
Production & Quality Control
Every Luyi solar street light undergoes strict quality testing before shipment.
Our factory follows strict quality management standards to ensure reliable product performance for global infrastructure projects.
Related Solar Lighting Certifications
The Luyi solar street lighting system can support international project requirements and export standards.

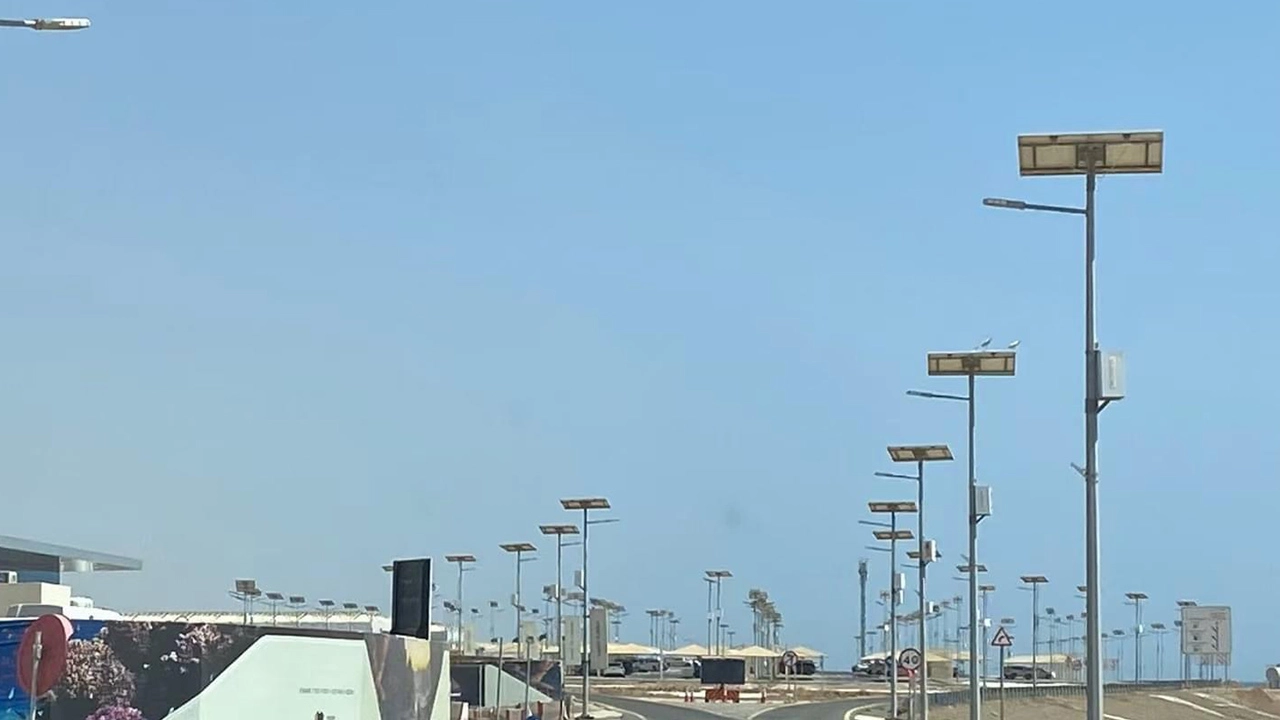

View Our Global Solar Street Light Projects
Packaging & International Shipping
Professional, eco-friendly export packaging ensures the safety of international solar streetlight projects during transit.

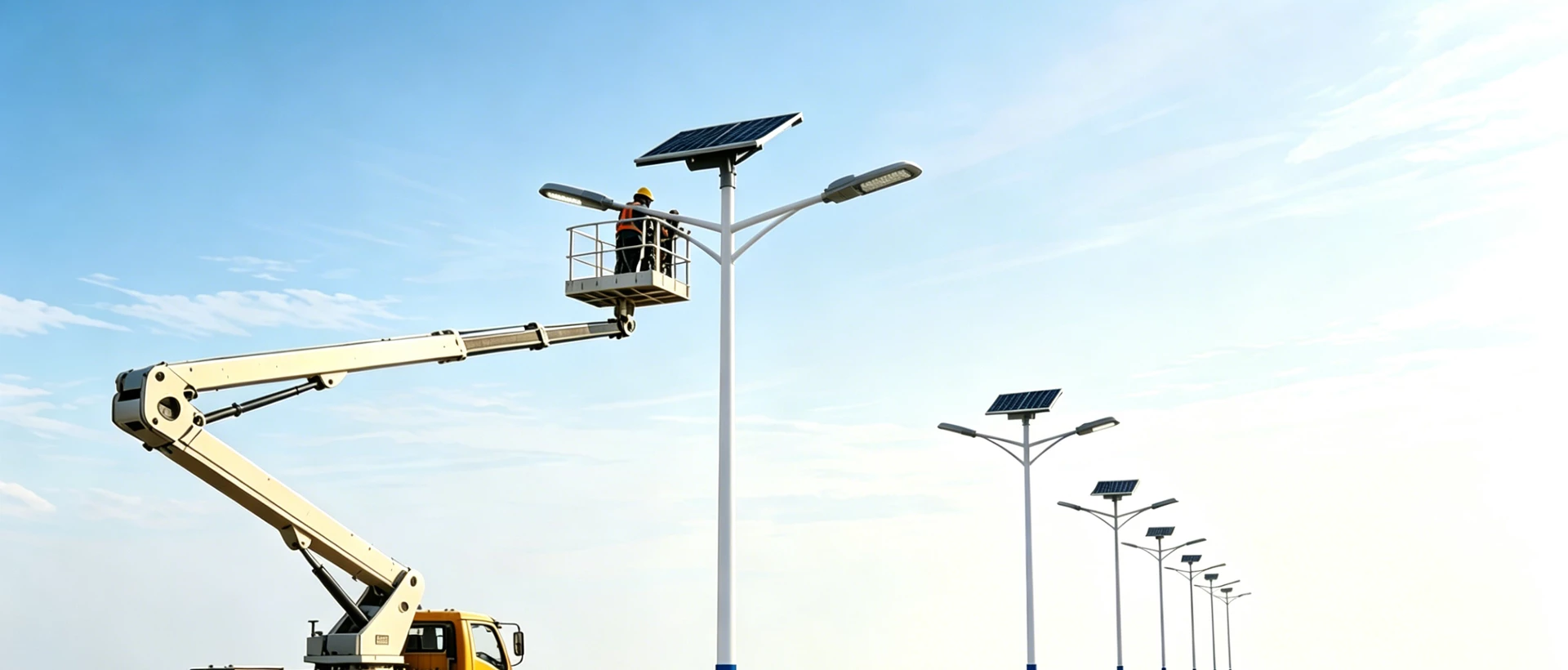

Luyi Solar Street Light Installation Process Guidance
The Luyi solar street light features an integrated design that significantly simplifies the installation process. Without complicated underground wiring or external power connections, the system can be installed quickly and efficiently for municipal roads, highways, industrial parks, parking lots, rural roads, and public infrastructure projects.
Step 1: Prepare the Installation Site
Before installation, confirm the project layout and ensure the selected location receives sufficient sunlight exposure throughout the day.
Installation Recommendations:
Recommended Pole Height:
| Power | Pole Height |
| 50W | 5-6 meters |
| 60W | 6-7 meters |
| 80W | 7-8 meters |
| 100W | 8-10 meters |
Step 2: Install the Light Pole
Secure the light pole onto the concrete foundation using anchor bolts.
Pole Installation Requirements:
Step 3: Mount the Solar Street Light
Lift the solar street light onto the pole arm and securely fasten the mounting bracket.
Installation Notes:
Step 4: Connect the Internal System
The Luyi solar street light comes with a pre-configured internal control system, reducing complicated wiring procedures.
System Inspection:
Step 5: Test the Lighting System
After installation, perform a complete system test to ensure normal operation.
Testing Checklist:
Step 6: Final Inspection
Adjust the lighting angle and confirm illumination coverage according to the project requirements.
Final Inspection Items:
Frequently Asked Questions
Solar Street Light Luyi
What are the key features of Luyi solar street lights?
Luyi solar street lights feature advanced LED technology paired with high-efficiency solar panels. They offer bright, reliable illumination while consuming minimal energy. The lights are designed with durable materials to withstand harsh outdoor conditions and come equipped with motion sensors, adaptive brightness control, and smart monitoring capabilities for enhanced energy savings.
How do Luyi solar street lights save energy compared to traditional street lights?
Luyi solar street lights save energy by using solar power, a renewable energy source, to operate. Unlike traditional street lights that rely on the electrical grid, Luyi lights harness the sun’s energy during the day, which is stored in the battery for nighttime use. The energy-efficient LEDs provide bright illumination while consuming less power than conventional lighting options, significantly lowering electricity costs.
Can Luyi solar street lights function in areas with cloudy or rainy weather?
Yes, Luyi solar street lights are designed to function efficiently even in cloudy or rainy weather. The high-efficiency solar panels can still capture and store energy in low-light conditions, ensuring that the lights remain operational throughout the night. The system is equipped with a large enough battery to store energy for extended periods, making them reliable even on overcast days.
Can Luyi solar street lights be integrated into smart city infrastructure?
Yes, Luyi solar street lights can be integrated into smart city infrastructure. With their advanced control systems, they can be connected to a central monitoring system for real-time performance tracking, remote control of lighting schedules, and energy management. This integration helps optimize energy use and allows for easy maintenance and monitoring of large-scale installations.
Are Luyi solar street lights suitable for all outdoor environments?

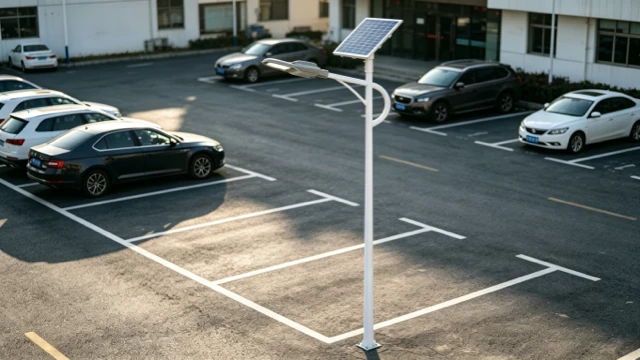

Yes, Luyi solar street lights are highly versatile and suitable for a wide range of outdoor environments. Whether for urban streets, rural roads, parking lots, parks, or pathways, Luyi lights provide reliable illumination in any setting. Their weatherproof and durable construction makes them ideal for harsh outdoor conditions, including extreme heat, cold, rain, and snow.
What is the lifespan of the LiFePO₄ battery?
The battery typically supports over 2000 charge cycles and offers a long operational lifespan under normal outdoor conditions.
How many rainy days can the system support?
Depending on the model configuration, the system can support approximately 3–5 days of backup operation during rainy weather.
Can the brightness be customized?
Yes. Different brightness modes and intelligent dimming settings can be customized according to project requirements.
Are these solar street lights suitable for high-temperature regions?
Yes. The system is designed for stable operation in high-temperature environments such as the Middle East and Africa.
Do you support OEM and private label projects?
Yes. We provide OEM and ODM services, including customization of logos, packaging, and technical configurations.
What pole height is recommended?
The recommended installation height ranges from 5 meters to 10 meters depending on the wattage model.
Can I get DIALux lighting simulation support?
Yes. We can provide professional lighting simulation support for engineering and infrastructure projects.
What is the production lead time?
Production lead time depends on order quantity and customization requirements.
